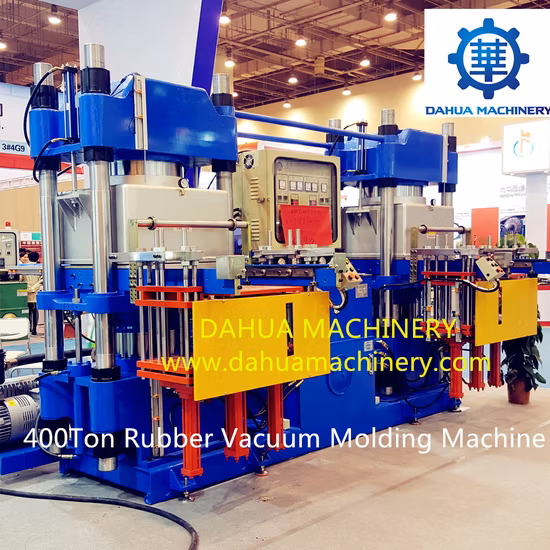

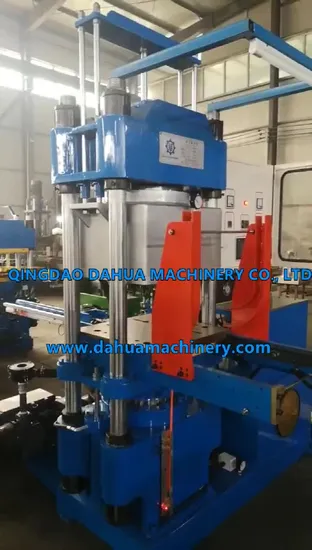

Automatic Rubber Compression Molding Press Machine

Automatic Rubber Compression Molding Press Machine

description Rubber Vulcanizing machine/Hydraulic press/EVA Vulcanizing machine We have ISO9001:2008,SGS,CE standard and
Send to us
Basic Info
Model NO. XLB
Certification CE, ISO
Condition New
Customized Customized
Automatic Grade Automatic
Structure Vertical
Warranty of Core Components: 3 One Year
Machine Type Vulcanizer
After-Sales Service Provided Online Support, Engineers Available to Service
Applicable Industries Manufacturing Plant, Energy & M
Factory Direct Sales with Competitive Price
Plate Temperature Tolerance ±1°c
Dimension(L*W*H) 3200*2400*2500
Weight 4500kg-20500kg
Power 3kw/4kw
Transport Package Wooden Packaging
Specification 380V or as your requirements
Trademark Evertech
Origin Qingdao, China
HS Code 84778000
Production Capacity 500 Set/Sets Per Year
Product Description

description

Rubber Vulcanizing machine/Hydraulic press/EVA Vulcanizing machine

We have ISO9001:2008,SGS,CE standard and offer all kinds of certification according to customer's request:like CO,CIQ,SASO and so on.

1.Material of steel plate:

We use hight quality carbon steel Q-235(produce by Jigang Group which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel

Automatic Rubber Compression Molding Press Machine

2.Weldment of frame : world technique

Welded together as a whole part,Stewing fire treatment after weldment.

(Carbon dioxide gas shielded welding,alloyed welding wire).

submerged arc welding, VSR treatment after weldment.

Automatic Rubber Compression Molding Press Machine

3.Piston:

the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.

4.Heating way&precision temperature control:

Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity)

range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )

Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C

Also we can produce the machine with water cooling system.

♥ 5.Hydraulic system: (PLC control)

the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.

We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.

Automatic Rubber Compression Molding Press Machine

6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.

Parameters/version

XLB350*350*2

XLB400*400*2

XLB500*500*2

XLB600*600*2/4

XLB750*850*2

XLB1000*1000*2

Mould closing force

0.25

0.5

0.8

1.0

1.6

2.5

Hot plate spacing

125

125

125

125

125

200

Hot plate layer

2

2

2

2/4

2

2

Plunger stroke

250

250

250

250/500

250

400

Heating way

Electricity/stream

Electricity/stream

Electricity/stream

Electricity/stream

Electricity/Stream

Electricity/stream

Main motor power

2.2

2.2

2.2

2.2

3

5.5

The thermal power

2.4kw/board

3kw/board

3kw/board

7.5kw/board

9kw/board

10.8kw/board

Size(l*w*h)

1450*400*1350

1600*400*1440

1450*690*1818

1880*780*1660

2100*1010*1900

2400*960*2500

Weight(kg)

1200

1500

1700

2500/3100

3560/4300

8300

1.Application

It is mainly in use of vulcanizing various kinds of rubber pattern products.

1) The body use frame type, mainly consist of top crossing, plate, table, piston, hydraulic cylinder and frame. We put asbestos board between plate and top crossing, table, for its good heat insulation. Use polyurethane material sealing ring between piston and hydraulic cylinder with good sealing property. The piston material is chilled cast iron, hydraulic cylinder material is ductile cast iron, weldment between top and bottom crossing.

2) Put holder and oil cylinder at the side of plate, push-off and reseting moulds are finished by oil cylinder moving when using. There is not ejecting holder in manual ejecting mould structure ,but still convenient when using.

3) Hydraulic system is consist of unipump, operating valve and control system.

4) Electric system is consist of oil pump motor and vulcanizing timing. When working pressure reach 22.1 mpa, electro connecting pressure gauge control, time relay on the faceplate is used for setting vulcanizing time. When reach the setting time, it will warn automatically, push TA button can remove warning.
